New Dimension
Stairwell
CMP
Super Max Series
- Confinement Corner Mount
- Suitable for minimum to maximum security locations
- One-piece die formed housing
- All corners and seams continuously welded smooth
- Optional dimmable driver available
- Finishes: black, white, bronze, gray, silver, or RAL options
- Length: 21”, 35”, 49”
- CCT: 2700K – 5000K
- CRI: 82
Ligature-Resistant
Wet Location
VRP
Vandal Resistant Panel
- Housing: 16-gauge aluminum with seam welded corners and sealed to the plenum
- Polycarbonate lens
- Mounting options: flat T grid lock to grid, and hard ceiling flange with installation frame
- Optional concealed microwave occupancy sensors
- Symmetrical light distribution
- Battery backup
- Controls: nLight® and nLight® air
- Finishes: antimicrobial white, black, silver, bronze, or RAL options
- Sizes: 1 x 1, 2 x 2, 1 x 4, 2 x 4
- CCT: 2700K to 5000K
- CRI: 80, 90
Ligature-Resistant
IK10
IP66
VRDL
Vandal Resistant Downlight
- Polycarbonate or acrylic lens
- Mounting: flanged or flangeless with mud-in
- Controls: nLight® and nLight® air
- Finishes: antimicrobial white, black, brushed stainless steel, silver, bronze, or RAL options
- Sizes: 4", 6"
- CCT: 1800K – 5000K static white, tunable white, warm dimming, red, and amber
- CRI: 80,90
Ligature-Resistant
IK10
IP66
NSF2
Wet Location

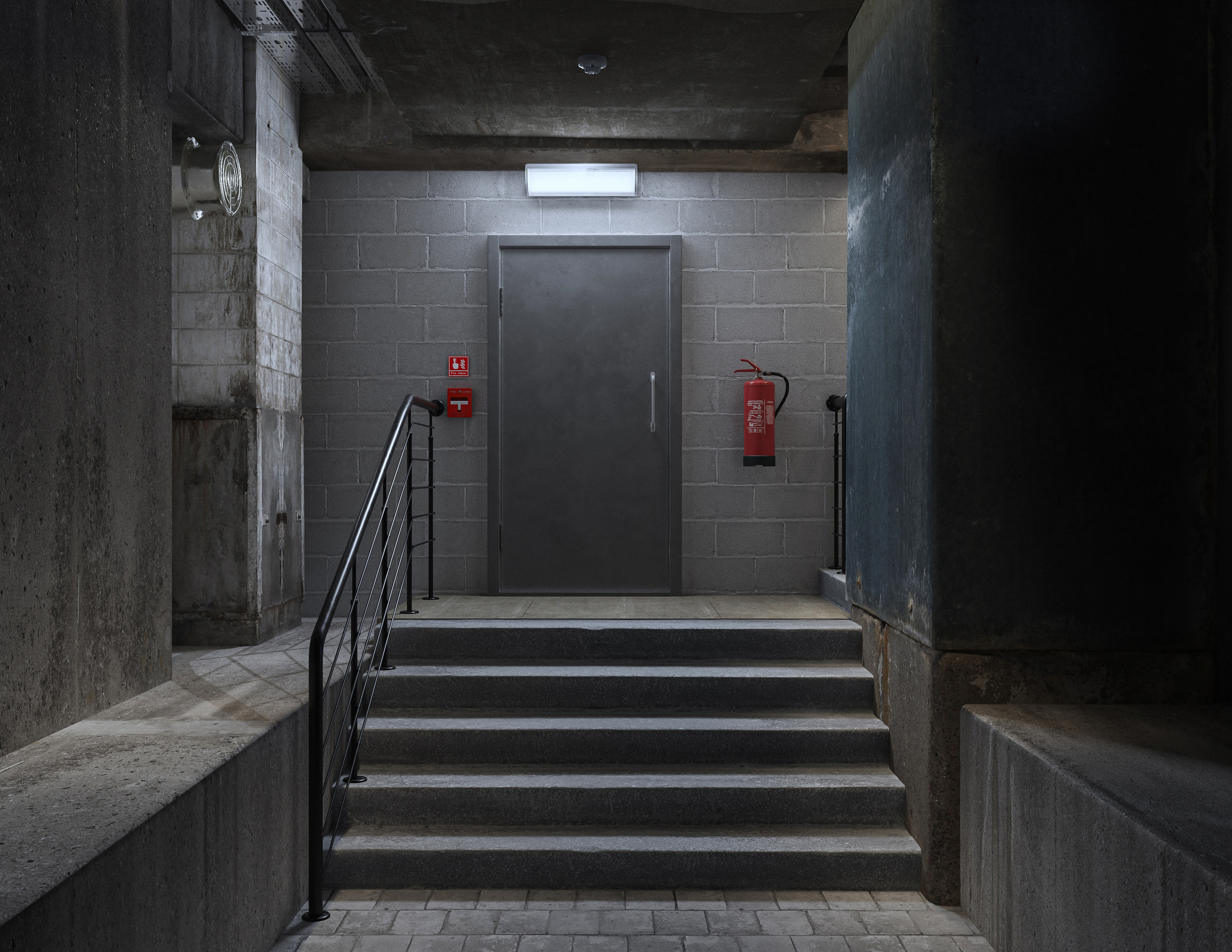

VCM8
Super Max Series
- Polycarbonate lens
- All-aluminum housing
- Successfully passed 4,000h salt spray test
- Features a Super Durable Corrosion Resistance (SDCR) powder coat that meets the AAMA 2605 high-performance specification
- Designed in accordance with ASHRAE 90.1-2010 & IECC 2015 and the NFPA 101 requirements for stairwells
- Optional behind-the-lens occupancy sensor
- Mounting: wall, ceiling, or pendant
- Finishes: black, white, bronze, gray, silver, or RAL options.
- Size: 2ft, 3ft, 4ft
3G Vibration
Ligature-Resistant
IK10
Optional IP65
Wet Location
RMP
Super Max Series
- Confinement Recessed Mount
- Suitable for minimum to maximum security locations
- One-piece die formed cold rolled steel housing
- All corners and seams continuously welded smooth
- Suitable for both concrete pour and grid ceilings
- Finish: brushed stainless steel or electrostatically white polyester powder coating
- Size: 12" x 24", 12" x 48", 24" x 24", 24" x 48"
- CCT: 2700K – 5000K with optional single-frequency Amber LED nightlight
- CRI: 82
Ligature-Resistant
Wet Location
ARV13
ANYX Series
- Available in standard LED, Amber, and high output
- Durable color-impregnated polycarbonate housing reinforced by a marine-grade die-cast aluminum base
- Behind-the-lens microwave occupancy sensor available
- Various trim options available
- Finishes: black, white, bronze, and gray
- CCT: 2700K – 5000K with Amber option
- CRI: 82
IP66
Wet Location
SWP1212
Swoop
- 5-inch-deep square luminaire
- Available in standard LED, Amber, and high output
- Polycarbonate housing supported by a marine grade, and a die cast aluminum base plate
- Behind-the-lens microwave occupancy sensor available
- 3 trim options available
- Finishes: black, white, bronze, and gray
- CCT: 2700K – 5000K
- CRI: 82
IP66
Wet Location
AEL
Architectural Egress Luminaire
- Water protection with a drip cap
- Marine grade heat treated extruded aluminum housing
- Die cast marine grade aluminum continuously welded to housing
- Finishes: Black Hammertone, White Orange Peel/Textured White, Bronze Hammertone, Silver Hammertone, or RAL options
- Sizes: 12IN, 24IN, 36IN, 48IN, 72IN
- CCT: 2700K – 5000K or single frequency Amber
- CRI: 82
Wet Location
WMP
Super Max Series
- Confinement Wall Mount Luminaire
- Suitable for minimum to maximum security locations
- One piece die formed housing in stainless or cold rolled steels with all corners and seams continuously welded smooth
- Secure hinge to prevent unauthorized access
- Finishes: black, white, bronze, gray, silver, brushed, or RAL options
- Size: 11" x 15", 11" x 26", 11" x 37"
- CCT: 2700K – 5000K with optional single-frequency Amber LED nightlight
- CRI: 82
Ligature-Resistant
Wet Location
VPF
Vision Series
- All-aluminum build
- Glare-controlling polycarbonate lens
- Optional microwave or Bluetooth occupancy sensors concealed behind the lens
- Successfully passed 4,000h salt spray test
- Finished with Super Durable Corrosion Resistant powder coat (SDCR) that meets AAMA 2605 high performance specification
- Finishes: black, white, bronze, gray, silver, or RAL options
- Size: 2FT, 3FT, 4FT
- CCT: 2700K – 5000K
- CRI: 82
Ligature-Resistant
Wet Location
IK10
Blade
- Full-cut-off optics for unobtrusive illumination of path of egress
- Mounting over doorways or mullions
- Drip cap water protection
- Extruded UV stabilized opal polycarbonate lens
- Finishes: black, white, bronze, gray, silver, or RAL options
- Sizes: 12IN, 24IN, 36IN, 48IN, 72IN
- CCT: 2700K – 5000K
- CRI: 82
Wet Location

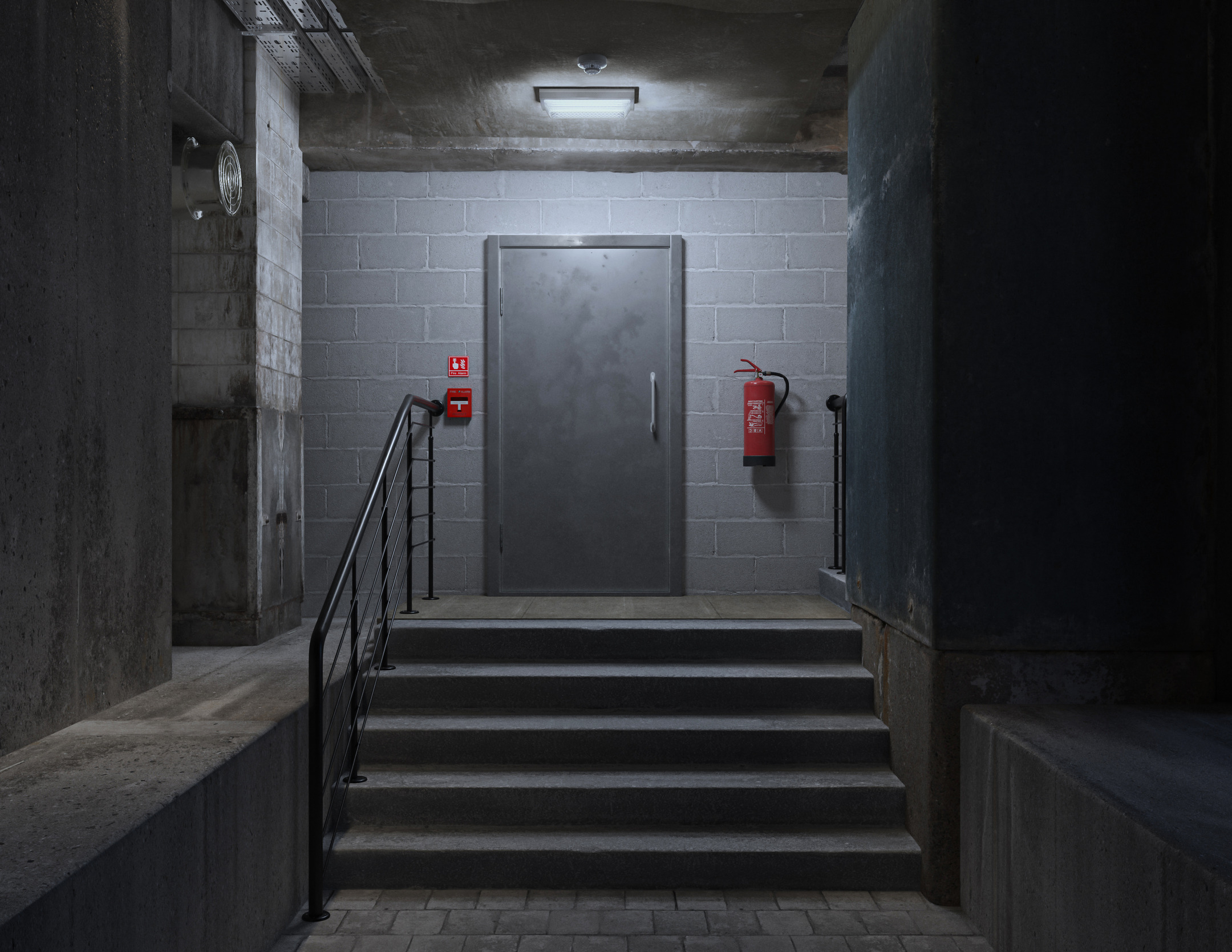

ESF18
- Designed in accordance with ASHRAE 90.1-2010 & IECC 2015 and NFPA 101 code requirements for stairwells
- High-frequency microwave sensor mounted behind lens
- Finishes: black, white, bronze, gray, or RAL options
- CCT: 2700K – 5000K
- CRI: 82
Wet Location

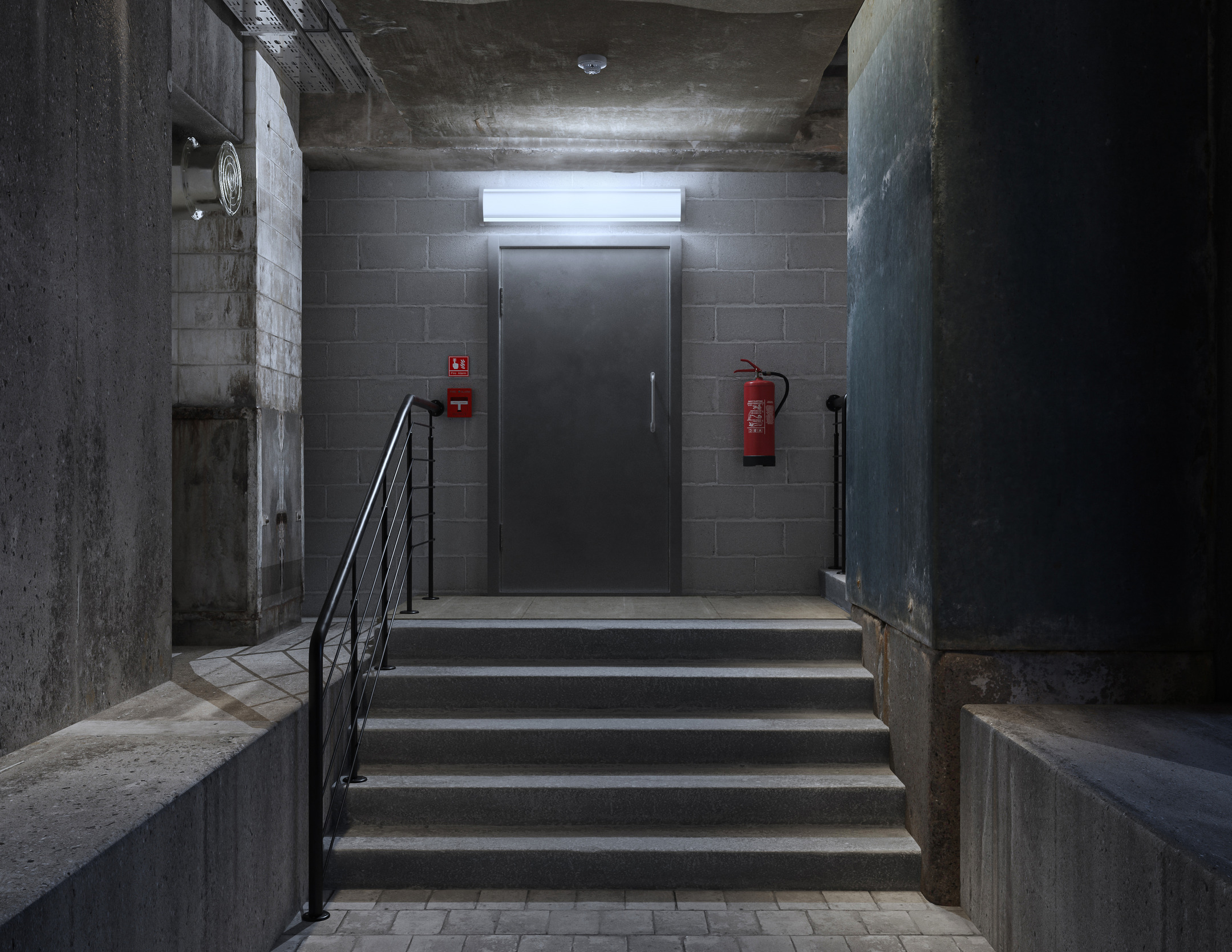

TSL9
- Designed in accordance with ASHRAE 90.1-2010 & IECC 2015 and NFPA 101 code requirements for stairwells
- Ultrasonic zoneless activated sensor
- Multiple battery back-up options are available
- Mounting: wall or ceiling
- Finishes: black, white, bronze, gray, or RAL options
- Sizes: 15IN, 24IN, 34IN, 46IN
- CCT: 2700K – 5000K
- CRI: 82
